AudioBox USB® 96 25th Anniversary
AudioBox USB® 96 25th Anniversary
Couldn't load pickup availability
Overview
A complete, all-PreSonus, hardware/software, high-definition recording kit — just add a computer!
The AudioBox USB® 96 audio interface has just the right features you need to start recording right away. Bus-powered and built to travel, the AudioBox USB 96 makes recording easy.

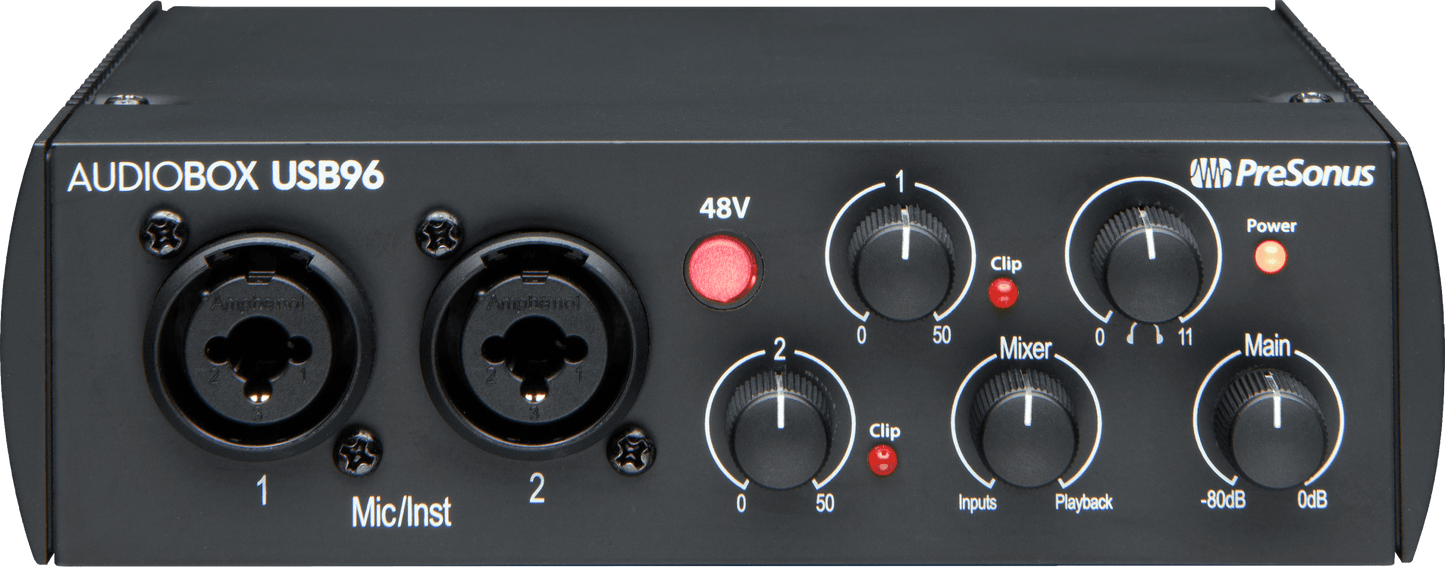

Two front-panel combo mic/instrument inputs, two balanced line-level outputs, an ultra-loud headphone out, and MIDI I/O make the AudioBox USB 96 an affordable stereo-recording solution for singer/songwriters, podcasters, guitar or guitar-bass collaborations and more. A Mix control lets you balance the level between the input signal and computer playback without any latency.
The AudioBox USB 96 is built to be used on the go with a heavy-duty steel chassis to stand up to the rigors of mobile recording. It's USB class-compliant - no special drivers to install - and natively compatible with Apple Silicon-based Macs and iOS and iPadOS devices. A screaming-loud headphone output ensures you can hear your music clearly, even in noisy locations.
Professional recording software included - Studio One 6, Artist Edition, is a great way to start recording and a powerful entryway into the Studio One universe. Users can upgrade to Studio One Pro when they're ready to take their game to the next level. Compatatible with virtually all macOS, and Windows.
Whether you're just getting into recording or are a veteran producer who wants to go mobile, the AudioBox USB 96 audio interface is ready to hit the road when you are.
Overview
Features
- Simple, affordable stereo-recording solution for singer/songwriters, podcasters, guitar or guitar-bass collaborations and more
- Professional-quality mic preamps: Your microphone will sound its best thanks to this low-noise, high-headroom design with 35 dBu of adjustable gain and switchable 48V phantom power for professional XLR condenser mics
- Recording software included: Studio One 6 Artist Edition
- Bus-powered by your connected USB device so no need for an additional power supply
- 2 combo mic/instrument inputs with high-quality mic preamplifiers: Connect mics, guitars and basses
- One loud, clear ¼-inch stereo headphone output
- Mix control lets you create a custom blend between inputs and playback for monitoring recordings with zero latency
- Two balanced TRS ¼-inch main outputs for studio monitors or other speakers
- Professional audio quality: Studio-grade converters allow for up to 24-bit/96 kHz recording and playback assuring the highest quality possible
- USB 2.0-compatible
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Free Software Included - Studio One Pro 6 Artist Edition
Your hardware registration includes Studio One 6, Artist Edition — a great way to start recording and a powerful entryway into the Studio One universe. Users can upgrade to Studio One Pro when they're ready to take their game to the next level. Compatible with virtually all macOS, and Windows.
Specs
Electronics
Connectivity
USB 2.0
Headphone Jack
1/4" TRS Active Stereo
Inputs
Two - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced)
Line Out
Two - 1/4" Balanced (Left and Right)
Phantom Power
+48 VDC (±2 VDC)
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
AudioBox® USB® 96K 25th Anniversary, Black
Series
AudioBox®
Inputs
Instrument Inputs Gain Range
(± 1 dB) +5 dB to 50 dB
Microphone Preamp Common Mode Rejection Ratio
(1 kHz, 55 dB Gain) > 45 dB
Microphone Preamp Frequency Response
(±3.0 dB) 20 Hz to 20 kHz
Microphone Preamp Gain Control Range
(± 1 dB) 0 dB to 35 dB
Microphone Preamp Input Impedance
(Balanced) 1200Ω
Microphone Preamp Maximum Input Level
(Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
Microphone Preamp Signal To Noise Ratio
(Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
Microphone Preamp Total Harmonic Distortion
THD+N (Unweighted, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
Measurements
Product Depth
1.75" (44.45 mm)
Product Height
5.5" (139.7 mm)
Product Width
5.5" (139.7 mm)
Miscellaneous
Commodity Code
8517.62.0090
Power Cable
USB 2.0 Bus-Powered
Supported Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Output
Headphone Outputs Frequency Response
(±1.0 dB) 20 Hz to 30 kHz
Headphone Outputs Maximum Output
60 mW/Channel @ 60Ω Load
Main And Line Outputs Output Impedance
51Ω
Performance
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB
