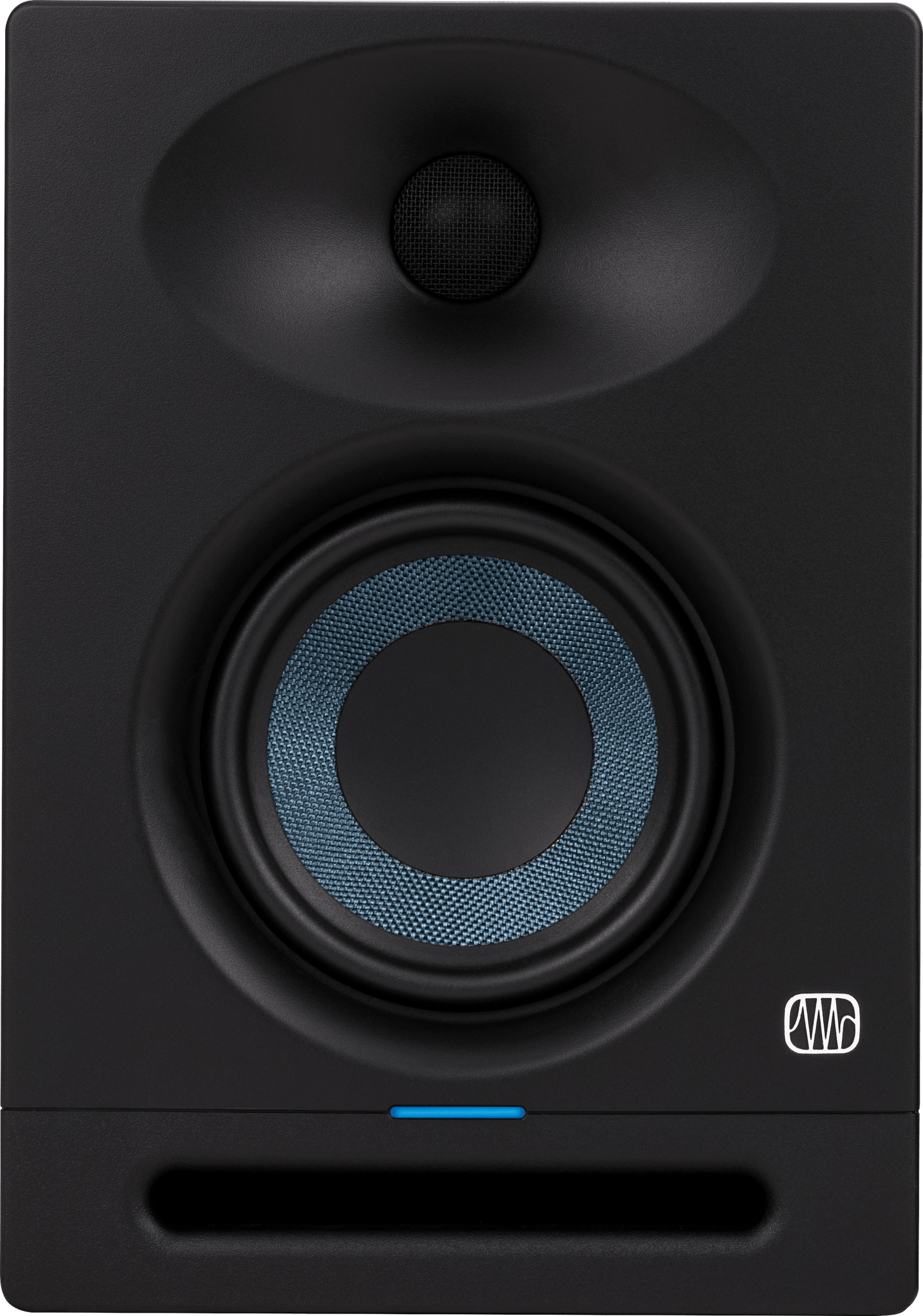

Eris® Studio 4 (Single)
Eris® Studio 4 (Single)
Couldn't load pickup availability
Overview
4.5-inch 2-Way Active Studio Monitors with EBM Wave Guide
The Eris® Studio 4 sets a new standard for compact studio monitors. With its surprising amount of low-end and a wide, well-controlled sweet spot, you can enjoy premium, accurate monitoring in even the smallest of mixing spaces. Designed for superior performance in both home studios and small professional mix rooms, the Eris Studio 4 combines flexible connectivity with sonic accuracy that puts it a class all its own.
The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response that allows you to hear the finest details in your mix, while a wide 120-degree horizontal dispersion creates a broad sweet spot with lifelike stereo imaging. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction.
The 4.5-inch, woven-composite, low-frequency driver produces tight, clear bass with plenty of punch that defies the Eris Studio 4's space-saving size. The ported enclosure and 50W of biamped power combine to maximize bass response and allow the Eris Studio 4 to reach down to an astonishing 55 Hz - without a subwoofer!
Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking Eris speakers up to virtually anything.
Overview
Features
- 4.5-inch, woven-composite, low-frequency transducer
- 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
- 120˚ (H) x 60˚ (V) EBM waveguide for wide sweet spot
- Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
- 50W, Class AB biamplification
- 55 Hz to 20 kHz frequency response
- 100 dB SPL (Peak, @ 1 meter)
- Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)
- RF interference, output-current limiting, over-temperature, transient, subsonic protection and amplifier "soft start" feature (eliminates popping on power-up)
- Internal power supply with IEC connector and power switch with on/off LED
- Balanced XLR and ¼-inch inputs and unbalanced RCA inputs
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Honest. Expressive. Powerful.
Like all PreSonus® studio monitors, the Eris® Studio 4 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space, and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Eris® Studio 4, Black, 220-240V UK
Series
Eris®
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Powere
25 Watts
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Power
25 Watts
LF Transducers
4.5" Woven Glass Fiber Composite
Monitor Inputs
1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA
Monitor Type
2-Way Active
Power Amplifier Type
Class AB
Measurements
Product Depth
7.28" (18.5 cm)
Product Height
10" (25.4 cm)
Product Width
7" (17.8 cm)
Miscellaneous
Commodity Code
8518210000
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Performance
Peak SPL
99 dB (@ 1 meter)
Speakers
Coverage Pattern
120 degree (H) x 60 degree (V)
Crossover Frequency
2.7 kHz
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Eris® Studio 4, Black, 220-240V EU
Series
Eris®
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Powere
25 Watts
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Power
25 Watts
LF Transducers
4.5" Woven Glass Fiber Composite
Monitor Inputs
1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA
Monitor Type
2-Way Active
Power Amplifier Type
Class AB
Measurements
Product Depth
7.28" (18.5 cm)
Product Height
10" (25.4 cm)
Product Width
7" (17.8 cm)
Miscellaneous
Commodity Code
8518210000
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Performance
Peak SPL
99 dB (@ 1 meter)
Speakers
Coverage Pattern
120 degree (H) x 60 degree (V)
Crossover Frequency
2.7 kHz
Compare
Compare
Looking for the perfect studio monitor? PreSonus has options for all room sizes and budgets.
|
Eris® Studio 4 (Single)
1.277,34 kr
|
Eris® Studio 5 (Single)
1.746,09 kr
|
Eris® Studio 8 (Single)
2.683,59 kr
|
|---|---|---|---|
| HF Transducers | 1” Ultra Low Mass, Silk Dome Tweeter | 1” Ultra Low Mass, Silk Dome Tweeter | 1.25” Ultra Low Mass, Silk Dome Tweeter |
| LF Transducers | 4.5" Woven Glass Fiber Composite | 5.25" Woven Glass Fiber Composite | 8" Woven Glass Fiber Composite |
| Monitor Inputs | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA |
| Peak SPL | 99 dB (@ 1 meter) | 102 dB (@ 1 meter) | 106 dB (at 1 Meter) |
| Crossover Frequency | 2.7 kHz | 3.5 kHz 3.5 kHz | 3.5 kHz |
| Power Amplifier Type | Class AB | Class AB | Class AB |
| Product Height | 10" (25.4 cm) | 11.5" (29.2 cm) | 16.5" (41.91 cm) |
| Product Width | 7" (17.8 cm) | 8" (20.32 cm) | 9.84" (25 cm) |
| HF Transducers | |||
| 1” Ultra Low Mass, Silk Dome Tweeter | 1” Ultra Low Mass, Silk Dome Tweeter | 1.25” Ultra Low Mass, Silk Dome Tweeter | |
| LF Transducers | |||
| 4.5" Woven Glass Fiber Composite | 5.25" Woven Glass Fiber Composite | 8" Woven Glass Fiber Composite | |
| Monitor Inputs | |||
| 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | |
| Peak SPL | |||
| 99 dB (@ 1 meter) | 102 dB (@ 1 meter) | 106 dB (at 1 Meter) | |
| Crossover Frequency | |||
| 2.7 kHz | 3.5 kHz | 3.5 kHz | |
| Power Amplifier Type | |||
| Class AB | Class AB | Class AB | |
| Product Height | |||
| 10" (25.4 cm) | 11.5" (29.2 cm) | 16.5" (41.91 cm) | |
| Product Width | |||
| 7" (17.8 cm) | 8" (20.32 cm) | 9.84" (25 cm) | |
