Overview

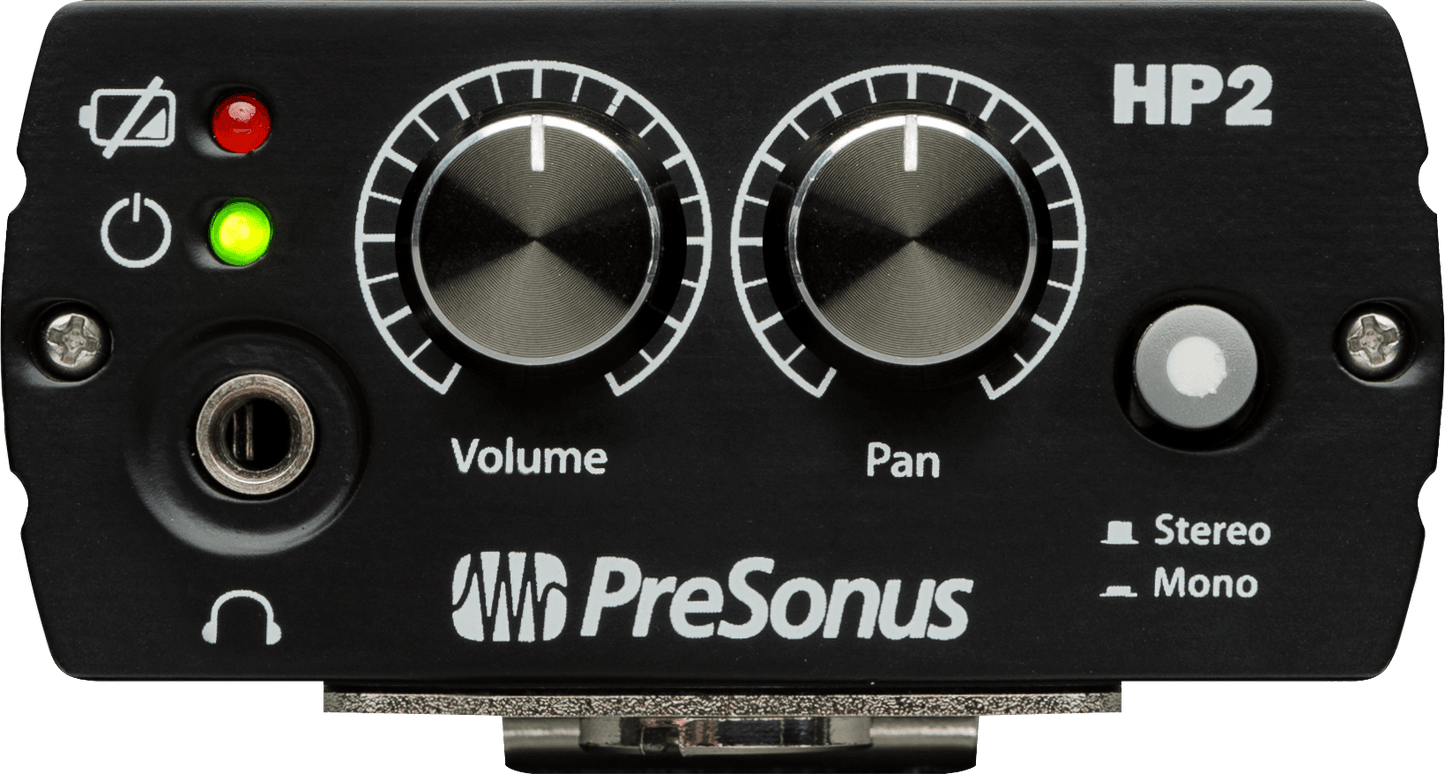

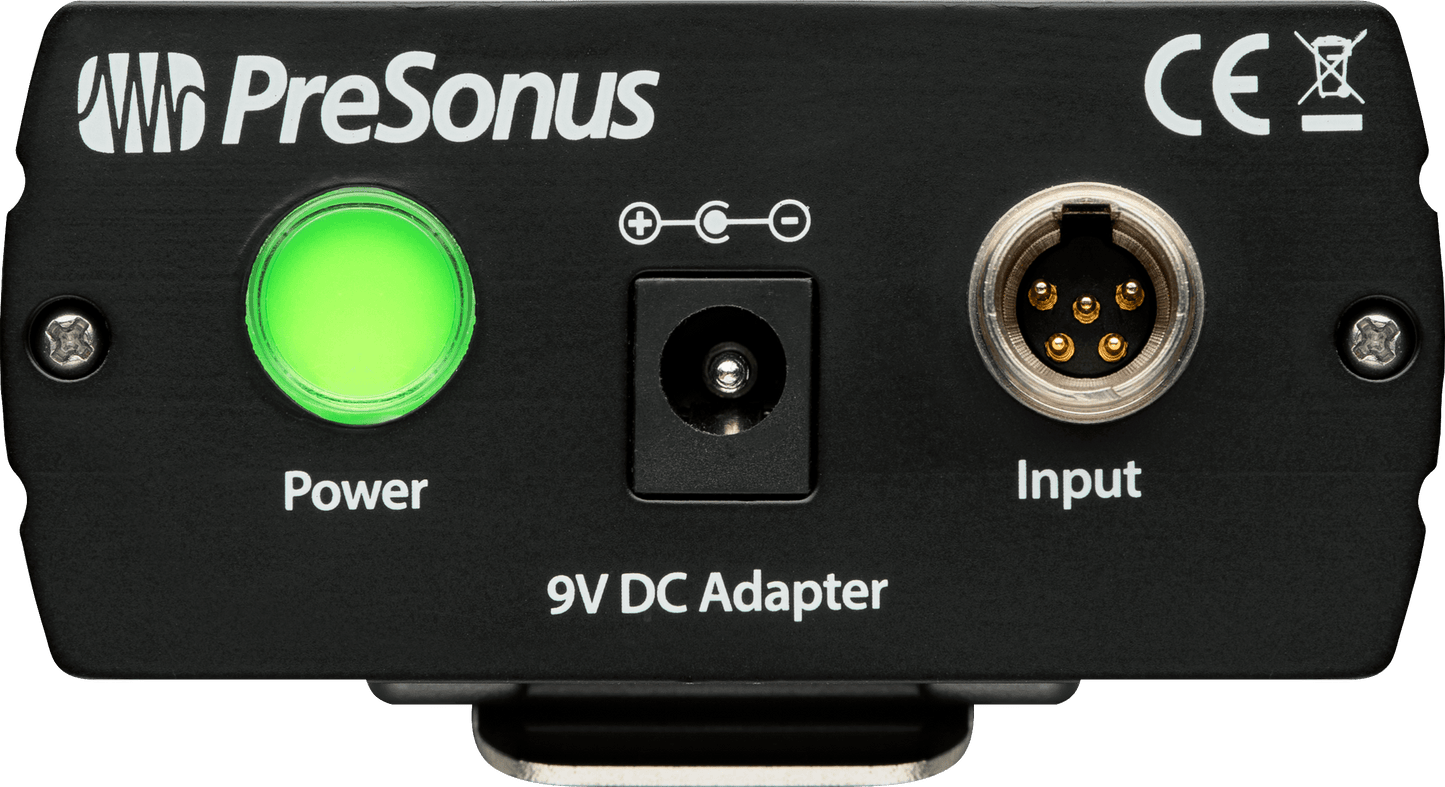

Designed for musicians and performers who demand mobility without compromising audio quality, the HP2 stereo personal headphone amplifier is a great choice for driving wired in-ear monitors (IEMs), as well as headphones. Portable and compact, it offers two XLR line-level inputs and one stereo 1/8-inch headphone output with volume control and can be powered by a 9V battery or a DC power supply. Operation can be switched between stereo and mono, and a Pan knob is provided. A 2m audio cable is included.
Overview
Features
- Battery-powered, stereo headphone amplifier
- Inputs: 2 female XLR connectors
- Output: stereo, 1/8" phone connector
- Power: 9V battery or DC power supply
- Volume and Pan control knobs
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Don't see what you're looking for?
Log in to your my.presonus.com account.
Specs
Voltage
9V DC
VoltageRequirements
9V DC
Color
Black
Product Name
HP2 Personal Headphone Amplifier, Black
Series
Headphone Amplifiers
Headphone Amplifier Input Connection Type
XLR Female, Balanced
Headphone Amplifier Input Impedance
15K Ohms
Headphone Amplifier Input Maximum Input Level
+4 dBV <0.01% THD+N, unity gain
Product Depth
2.875" (7.3 cm)
Product Height
1.25" (3.2 cm)
Product Height/Length
1.25" (3.2 cm)
Product Weight
1 lb (0.45 kg)
Product Width
5.25" (13.2 cm)
Power Cable
9 VDC, 40 mA, Center Pin Negative
Headphone Outputs Frequency Response
30Hz - 20kHz +/- 2dB
Headphone Outputs Impedance Working Range
>12Ω
Headphone Outputs Maximum Output
50 mW / channel, <0.01% THD+N, 20Ω load
