NSB 16.8 Networked Stage Box
NSB 16.8 Networked Stage Box
SKU:
2779306201
Regular price
10.549,00 kr
Regular price
10.549,00 kr
10.549,00 kr
Sale price
Unit price
per
inc. VAT*
Our rugged, rack-mountable 16x8 network stage box with 16 locking XMAX mic/line inputs and 8 locking XLR outputs.
Couldn't load pickup availability
Overview
Designed to work seamlessly with PreSonus® StudioLive® Series III mixers, the PreSonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. You also get 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and PreSonus Universal Control software. All eight outputs employ locking XLR jacks. A built in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 16.8 to sit well on the stage and survive the rigors of the road. The unit can be rack mounted with an optional rack-ear kit.
Overview
Features
- Rugged stage box enclosure with handles
- 16 locking mic/line inputs and 8 locking XLR outputs
- 16 remote-controllable XMAX preamps
- Gain compensation for shared inputs

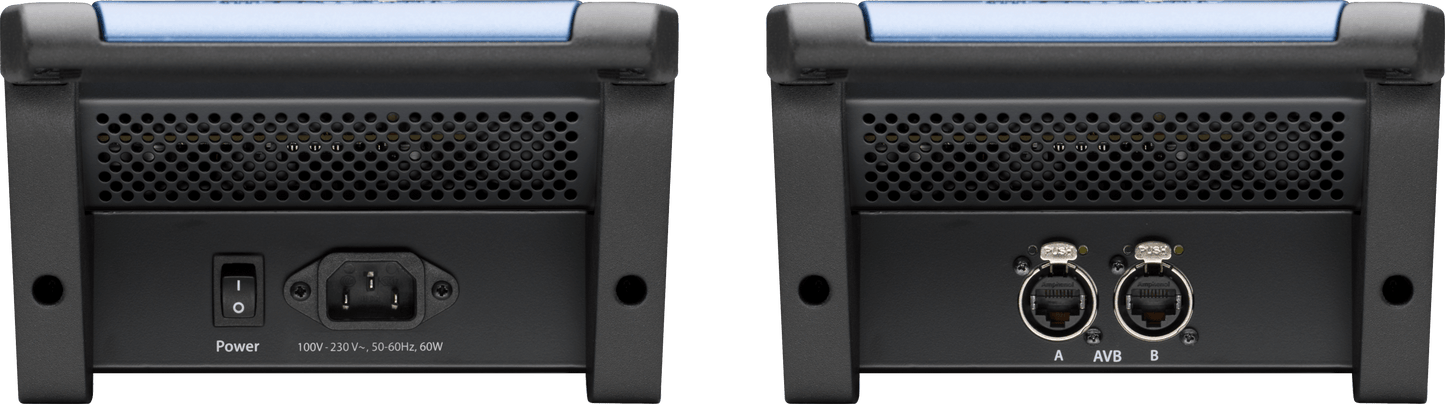

- 2 AVB ports with locking XLR Ethernet jacks
- 32x8 AVB (16 direct input channels + 16 gain-compensated input channels)
- Easy setup and control from StudioLive® Series III consoles and from free PreSonus® Universal Control software
- Optional Rackmount Kit available
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Universal Control v4.3.3.100963 (Windows)
- Universal Control v4.3.3.100963 (Mac)
- Universal Control 2.7 (Mac)
- Universal Control 2.7 (Windows)
- Universal Control 2.8 (Mac)
- Universal Control 2.8 (Windows)
- Universal Control 2.9.1 (Mac)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Gain compensation on every input.
The NSB 16.8 can provide inputs for any StudioLive Series III digital mixer on an AVB network. NSB-series stage boxes have onboard DSP that provides gain compensation on every input so every mixer on the network can make gain adjustments relative to the level set on the master mixer. In this way, every mixer can adjust the preamp level locally for optimal gain staging.
A complete networked solution.
StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The NSB 16.8 can be used alone or with many other NSB-series stage boxes to add remote audio to one StudioLive Series III digital mixer or multiple mixers on the same network.
Specs
Phantom Power
+48 VDC (±2 VDC)
Voltage
220-240V EU
VoltageRequirements
100-230 VAC, 50-60 Hz
Color
Black
Product Name
NSB 16.8 Networked Stage Box, Black, 230-240V EU
Series
NSB
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Line Input Connection Type
1/4" TRS, Balanced
Line Inputs Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+18 dBu
Line Inputs Signal To Noise Ratio
94 dB
Line Inputs Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Microphone Input Connection Type
XLR Female, Balanced
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to +60 dB
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Product Depth
4.5" (11.43 cm)
Product Height
7" (17.8 cm)
Product Height/Length
7" (17.8 cm)
Product Weight
6.2 lbs. (2.8 kg)
Product Width
16.7” (42.4 cm)
Refinement Weight
25-under
Power Cable
Locking IEC
Supported Sample Rates
48 kHz, 44.1 kHz
XLR Outputs Maximum Output Level
+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Digital Audio Dynamic Range
115 dB (A-Weighted, 48 kHz)
Specs
Phantom Power
+48 VDC (±2 VDC)
Voltage
220-240V UK
VoltageRequirements
100-230 VAC, 50-60 Hz
Color
Black
Product Name
NSB 16.8 Networked Stage Box, Black, 230-240V UK
Series
NSB
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Line Input Connection Type
1/4" TRS, Balanced
Line Inputs Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+18 dBu
Line Inputs Signal To Noise Ratio
94 dB
Line Inputs Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Microphone Input Connection Type
XLR Female, Balanced
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to +60 dB
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Product Depth
4.5" (11.43 cm)
Product Height
7" (17.8 cm)
Product Height/Length
7" (17.8 cm)
Product Weight
6.2 lbs. (2.8 kg)
Product Width
16.7” (42.4 cm)
Refinement Weight
25-under
Power Cable
Locking IEC
Supported Sample Rates
48 kHz, 44.1 kHz
XLR Outputs Maximum Output Level
+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Digital Audio Dynamic Range
115 dB (A-Weighted, 48 kHz)
